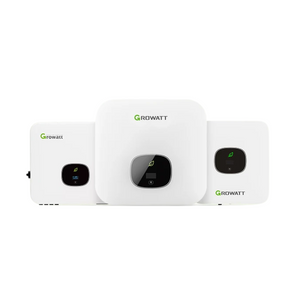

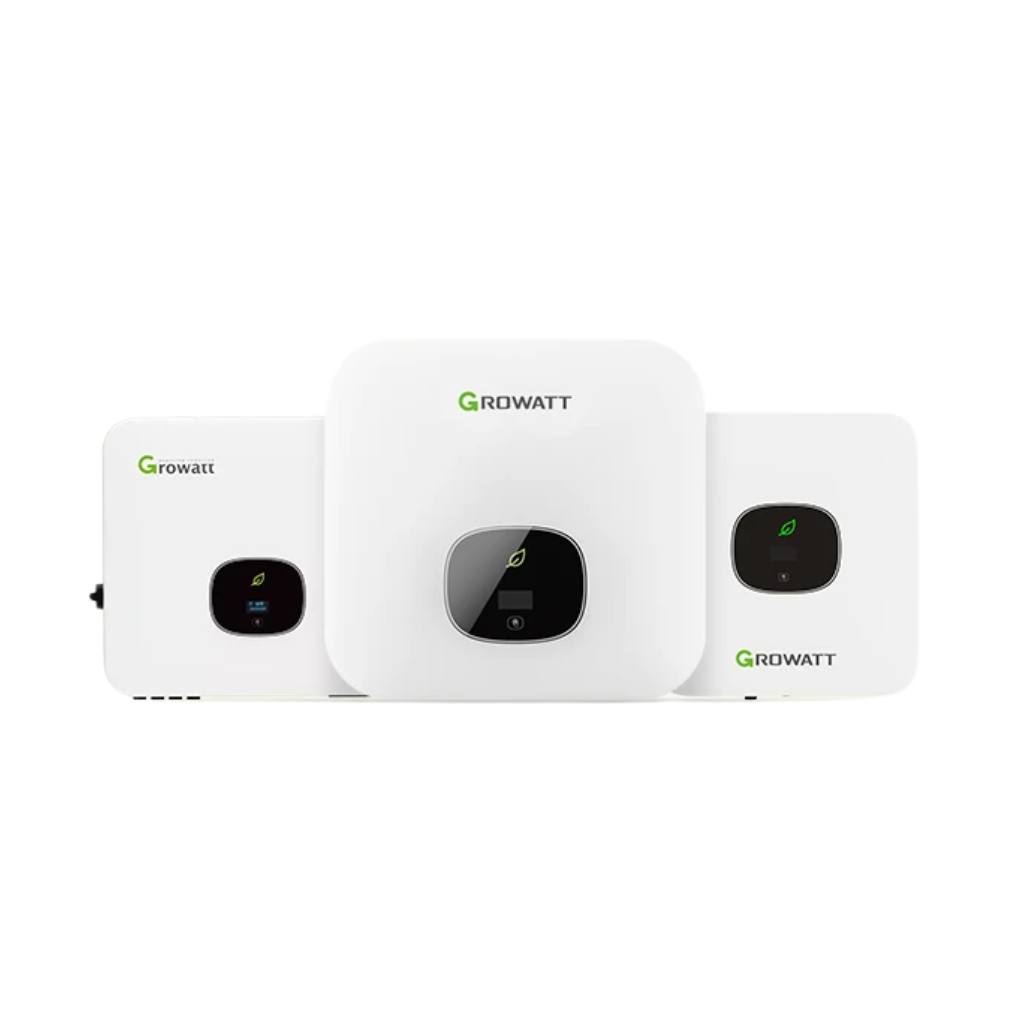

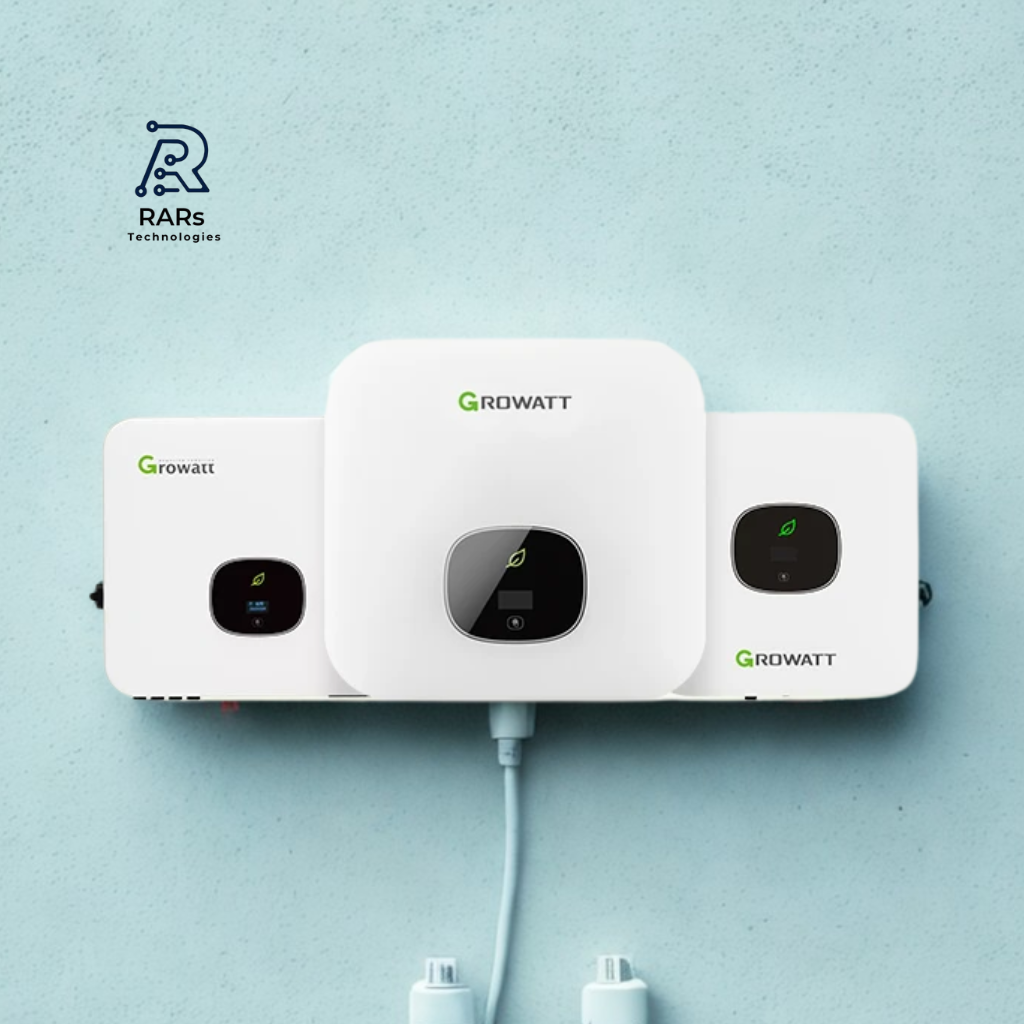

GROWATT 10KW OnGrid solar inverter

The Growatt 10kW On-Grid Solar Inverter (MOD 10KTL3-X) is a cutting-edge, three-phase grid-tied inverter designed for residential and commercial solar systems. With 98.6% efficiency, advanced dual MPPT technology, and WiFi remote monitoring, it maximizes solar power output while maintaining safety and reliability. Ideal for users looking to reduce electricity bills and transition to sustainable energy solutions.

Features of Growatt 10kW On-Grid Inverter

98.6% High Efficiency for Maximum Solar Yield

Built with premium components, this inverter ensures minimal energy loss and maximum conversion, even in variable sunlight conditions.

Dual MPPT Technology for Smart Power Tracking

Supports two independent MPPT trackers, allowing flexible string configurations and optimized power generation in partially shaded environments.

IP66 Weatherproof & Durable Outdoor Use

The IP66-rated enclosure protects the inverter from dust, rain, and heat – perfect for long-term, outdoor solar installations in all climates.

WiFi & App-Based Smart Monitoring

Stay in control with real-time performance monitoring via WiFi, LAN, or GPRS through the ShinePhone mobile app or web portal.

Built-In Surge Protection (SPD) and Optional AFCI

Equipped with Type II SPD on both AC and DC sides and optional Arc Fault Circuit Interrupter (AFCI) for enhanced system safety.

Benefits

Lower Electricity Bills with Net Metering

Integrates seamlessly with local net metering policies, allowing you to sell excess power back to the grid and reduce monthly utility costs.

Easy to Install, Easy to Use

Compact design with wall-mount compatibility, touch interface, and OLED display make this inverter highly user- and installer-friendly.

Eco-Friendly & Sustainable Energy

Reduce your carbon footprint and support a clean energy future by using a trusted, efficient solar inverter.

Technical Specifications – Growatt MOD 10KTL3-X

Brand: Growatt

Model: MOD 10KTL3-X

Rated Power: 10 kW (Max. 11 kVA)

Input Voltage Range (MPPT): 140V – 1000V DC

Max DC Voltage: 1100V

Number of MPPTs: 2

Efficiency: Up to 98.6%

Communication: WiFi, RS485, USB, GPRS, LAN

Protection: IP66, Type II SPD (AC & DC), Optional AFCI

Display: OLED with touch buttons

Operating Temp: -25°C to +60°C

Certifications: CE, TUV, IEC, VDE

Warranty: 5 Years (Extendable to 10 Years)

Why Choose Growatt 10kW Solar Inverter for Your Solar System?

✅ Trusted Global Brand in over 100+ countries

✅ Compatible with all Tier-1 solar panels

✅ Approved for Net Metering in Pakistan & globally

✅ Ideal for residential, commercial, and small industrial use

✅ Future-ready with smart home integration options
