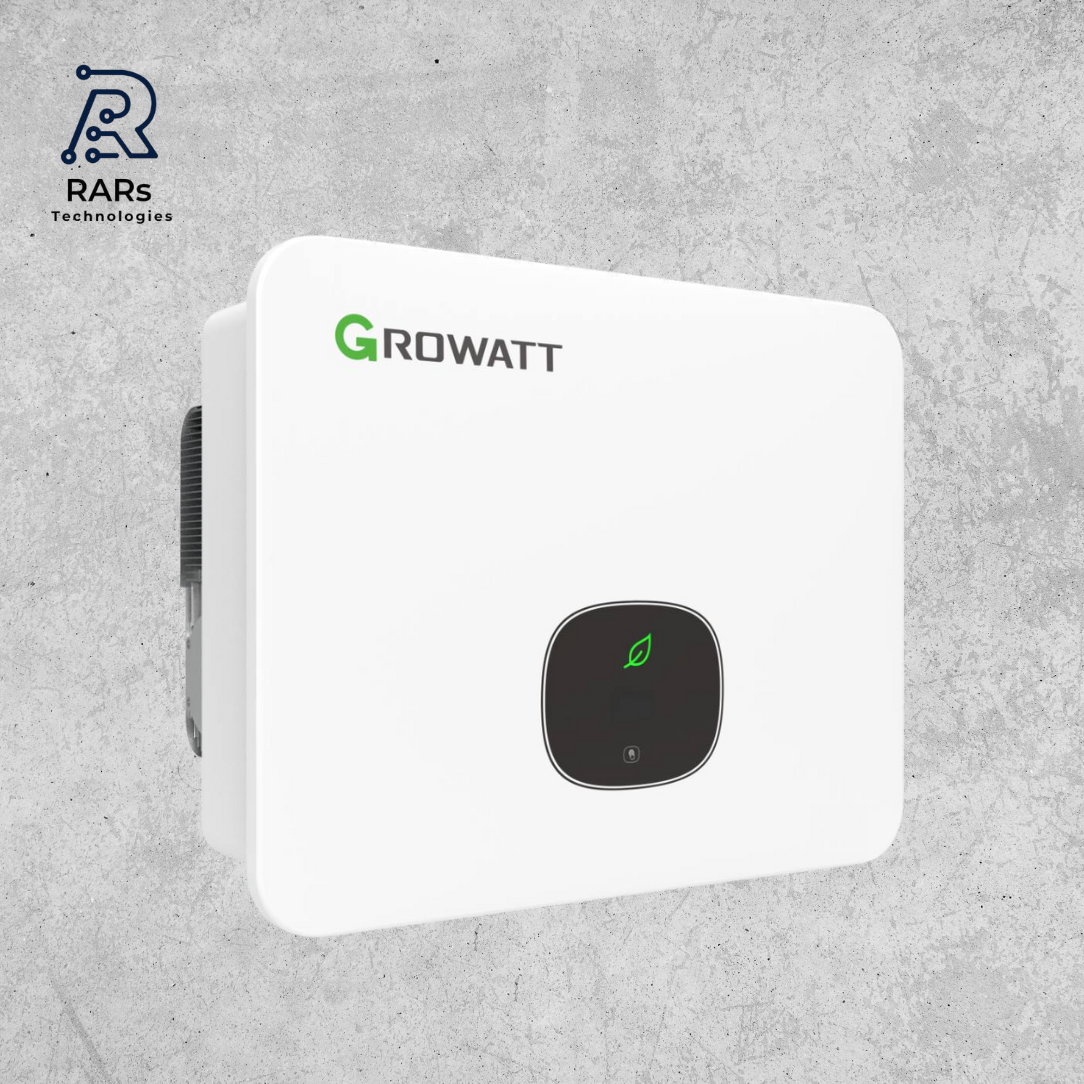

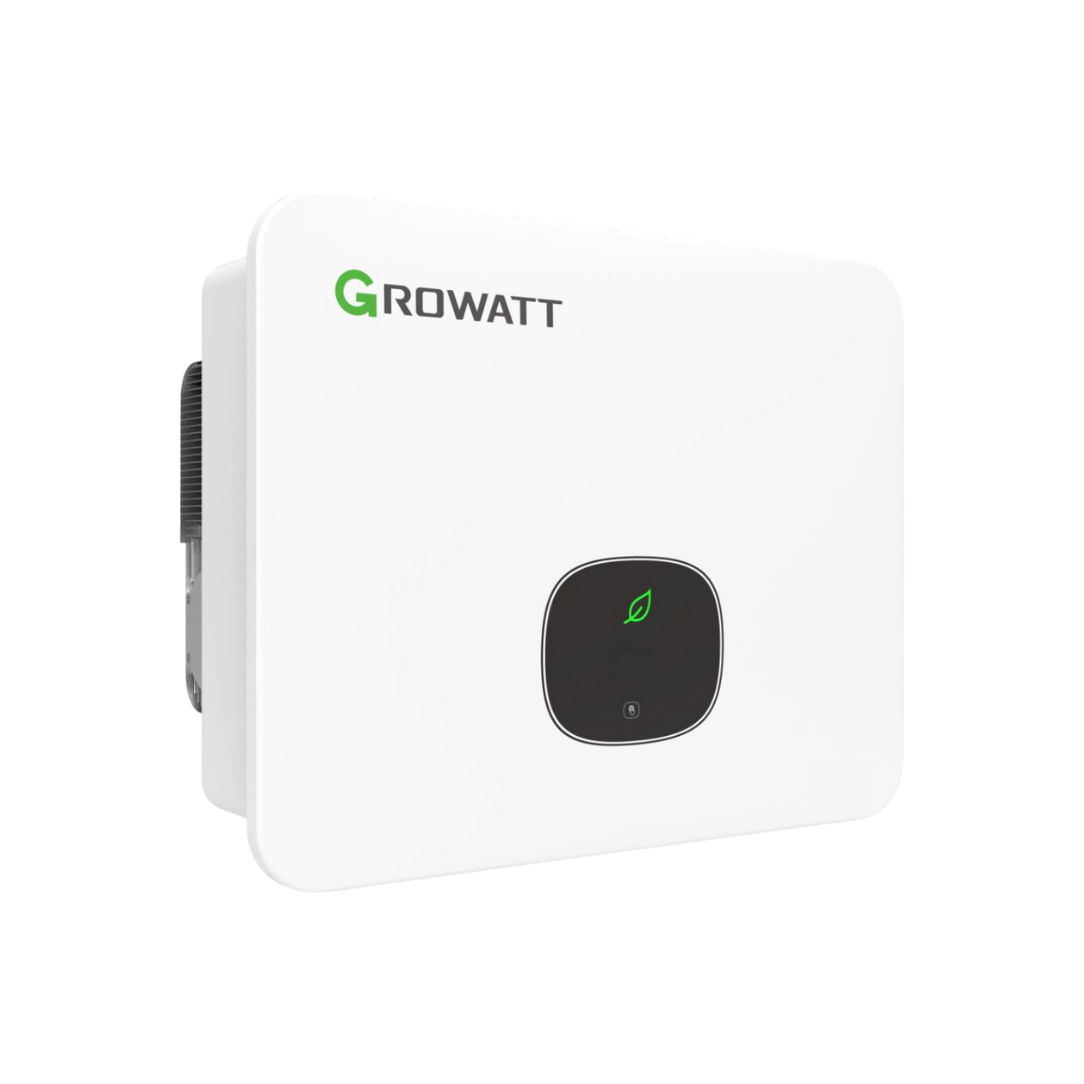

GROWATT 30KW OnGrid Solar Inverter

GROWATT 30KW OnGrid Solar Inverter
GROWATT 30KW OnGrid Solar Inverter

GROWATT 30KW OnGrid Solar Inverter

SKU:
Categories : Growatt
In Stock
Rs.465,000.00
Quantity
Add to wishlist Add to compare
Categories : Growatt
Tags :

On-Grid Solar Inverter Growatt 30KW

High-Efficiency Inverter for Commercial Rooftops and Medium-Scale Solar Projects

The Growatt 30KW On-Grid Solar Inverter is an intelligent and robust solution for commercial buildings, educational institutions, agricultural facilities, and medium-sized solar installations. With advanced MPPT technology, high conversion efficiency, and strong protection features, it delivers reliable performance in demanding environments.

Key Features of Growatt 30KW On-Grid Inverter

30,000W Rated Output Power

Designed for mid-sized commercial and institutional applications, delivering consistent solar power to meet high energy demands.

3 MPPTs for Flexible System Design

With 3 independent MPPTs, the inverter supports solar arrays with different orientations, enhancing energy harvest and system flexibility.

High Conversion Efficiency

Achieves up to 98.6% max efficiency, ensuring minimal energy loss and optimal return on investment.

Technical Specifications

Electrical Characteristics

  • Rated Output Power: 30,000W

  • Max PV Input Power: 45,000W

  • Max DC Input Voltage: 1100V

  • MPPT Voltage Range: 200V – 1000V

  • Number of MPPTs: 3

  • Strings per MPPT: 2

  • Max Efficiency: 98.6%

  • Euro Efficiency: 98.3%

AC Output

  • Output Voltage: 400V (Three Phase)

  • Grid Frequency: 50Hz / 60Hz

  • Adjustable Power Factor: 0.8 leading to 0.8 lagging

Safety & Protection

  • IP66 Rated – Fully weatherproof for outdoor use

  • Built-in DC Switch

  • Type II Surge Protection Devices (SPD) – AC & DC

  • Ground fault protection

  • Anti-islanding and over/under voltage protection

Monitoring and Communication

Real-Time Monitoring

Connects to Growatt Shine Server and ShinePhone App for live system performance, fault alerts, and data analytics.

Communication Interfaces

  • RS485

  • CAN

  • USB

  • Optional: Wi-Fi / GPRS / LAN
    Supports integration with energy monitoring platforms and SCADA systems.

Applications

Suitable For

  • Commercial rooftops

  • Schools and universities

  • Agriculture and irrigation systems

  • Medium-size solar farms

  • EV charging stations with solar

Grid Compatibility

Complies with utility grid requirements and supports net metering, feed-in, and export limitation controls.

Package Contents

  • Growatt 30KW On-Grid Inverter

  • Mounting accessories

  • Installation & user manuals

  • Warranty documents

  • Optional communication module

Why Choose Growatt 30KW Inverter?

Optimized for Commercial Use

Combines power, flexibility, and safety features in a compact unit ideal for mid-range installations.

Built to Last

IP66 rating ensures resistance to dust, rain, and extreme conditions — perfect for rooftop or outdoor field installations.

Global Support & Proven Technology

Growatt is a globally recognized brand, known for quality, innovation, and professional after-sales support.
